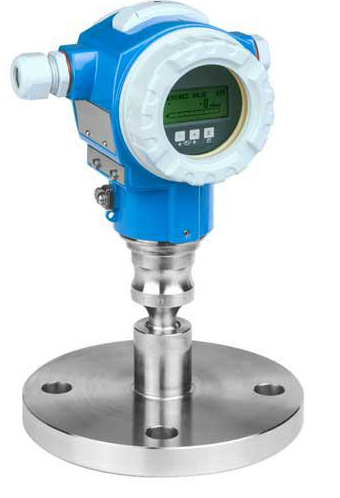

Cerabar S PMP75

product description

Pressure transducer with metal sensor

Anti-overload, with functional monitoring, with HART, PROFIBUS PA or FF FOUNDATION fieldbus communication protocol

advantage

Extremely high repeatability and long-term stability

High accuracy: ± 0.075%, platinum grade: ± 0.05%

Range than 100: 1, special requirements can be higher

For process pressure monitoring, up to SIL3, certified by TüV SüD according to IEC 61508

HistoROM® / M-DAT storage module

Functional monitoring of measuring elements and electronic modules

Continuous modularization for differential pressure, static pressure and pressure (Deltabar S, Deltapilot S, Cerabar S), such as:

- Replaceable display unit

- Universal electronic module

Quick commissioning via the Quick Setup menu

Live menu guided operation

Extensive self-diagnostic function

The device model is ASME-BPE

Application areas

The Cerabar S pressure transmitter can be used to solve the following measurement problems:

A variety of process control areas of gas, steam or liquid absolute pressure and gauge pressure measurement

Liquid level, volume or mass measurement

High temperature

- Maximum temperature up to 400 ° C (752 ° F) without diaphragm seal

High pressure, up to 700bar

Through a variety of certification, to meet the application needs around the world
