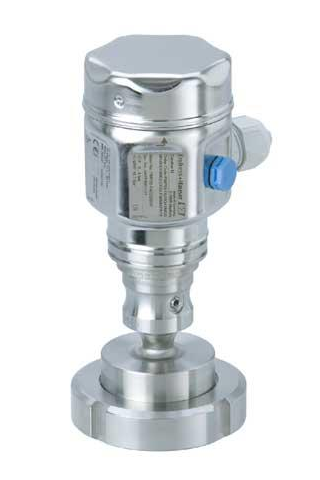

Cerabar M PMP55

product description

Pressure transducer with metal sensor

Has a fieldbus communication protocol for analog, HART, PROFIBUS PA or FF Foundation

advantage

Extremely high repeatability and long-term stability

High precision: ± 0.15%

The range is 100: 1

Full modular design for differential pressure, static pressure and pressure (Deltabar M - Deltapilot M - Cerabar M), such as:

- Replaceable display unit

- Universal electronic module

Easy to debug, do not need to use other operating tools

Live menu guided operation

- through the field display module

- via 4 ... 20 mA HART

- via PROFIBUS PA

- through the FF FOUNDATION field bus

Application areas

The Cerabar M pressure transmitter can be used to solve the following measurement problems:

A variety of process control areas of gas, steam or liquid absolute pressure and gauge pressure measurement

Measure the liquid level, volume or mass

Process temperatures up to 400 ° C (752 ° F)

Maximum pressure up to 400 bar

Through a variety of certification, to meet the application needs around the world
