Centrifugal pump

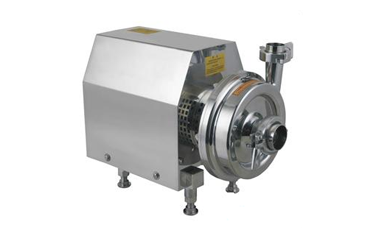

Product Name: Stainless steel centrifugal pump _ health level centrifugal pump

Series: centrifugal pump

Product Description: Health-level centrifugal pump application of drugs: infusion, distilled water, high purity water, containing particles (3-6 mm) of traditional Chinese medicine liquid, leaching solution. Cosmetics: dyes, alcohol, essential oils. Beverages: Alcohol, Liquor, Beer, Wort, Fermentation Broth, Juice Drink,

Stainless steel centrifugal pump _ sanitary centrifugal pump

Applications

Drugs: infusion, distilled water, high purity water, containing particles (3-6 mm) of traditional Chinese medicine liquid, leaching solution.

Cosmetics: dyes, alcohol, essential oils.

Drinks: Alcohol, Liquor, Beer, Wort, Fermentation Broth, Juice Drink, with Drinks.

Dairy: whey, cream, milk, sugar

Other: candy industry, baking industry, chemical industry and so on.

Hygienic centrifugal pump selection instructions:

Health-level centrifugal pump flow: the choice of performance curve in the middle of the table is appropriate.

Health-level centrifugal pump Operating temperature: -20-100 ℃ (maximum sterilization temperature of 133 ℃).

Working environment and media: Determine if explosion is required.

Health-level centrifugal pump working conditions: Hygienic centrifugal pump is a high level of horizontal level of transport, non-self-absorption type. (Self-priming use self-priming pump)

Sanitary centrifugal pump pump material: according to the media requirements 316L and 304 selection.

Sanitary centrifugal pump sealing material: standard rubber seal for the silicone rubber, according to the media selection of fluorine rubber, EPDM, polytetrafluoroethane, Dingqing.

product manual

Stainless steel centrifugal pump-SAS-type sanitary centrifugal pump is based on the general single-stage centrifugal pump flow large head low defects specially designed into a small flow of high-lift single-stage centrifugal pump. SAKS Series Stainless Steel Centrifugal Pump It has a special impeller structure that allows the pump to achieve high headage at low flow rates. SAKS-type health-level centrifugal pump with high efficiency and energy saving, health without dead ends, easy to clean and so on. SAKS series of sanitary centrifugal pump pump casing, pump cover and impeller all use high-quality stainless steel 304 or 316L manufacturing. Motor with stainless steel shield. The inner surface of the mirror polishing roughness Ra0.28um. Fully compliant with GMP requirements. SAKS series of sanitary centrifugal pumps are mainly used in pharmaceutical, alcohol, food, chemical, beverage and other industries need less flow of high-pressure transmission, high-pressure filter liquid delivery.

working principle

Stainless steel centrifugal pump - SAKS centrifugal pump is mainly rooted in the ordinary single-stage stainless steel centrifugal pump flow large low-head defects in the design of a small flow of large-head single-stage stainless steel centrifugal pump. SAKS series centrifugal pump its impeller modified by the design of small channels and reduce the flow. The pump performance is excellent, reasonable structure, small size, the use of reliable. SAKS series of sanitary centrifugal pump for the delivery of solid particles without clean liquid materials and pure water and other pharmaceutical products and beverages, alcohol.

Selection instructions

Flow: Select the performance curve in the middle of the table is appropriate.

Working temperature: -20-100 ℃ (maximum sterilization temperature of 133 ℃).

Working environment and media: Determine if explosion is required.

Working conditions: health level centrifugal pump level of the level of non-self-suction type. (Self-priming use self-priming pump)

Pump material: according to media requirements 316L and 304 selection.

Sealing material: standard rubber seal for the silicone rubber, according to the media selection of fluorine rubber, EPDM, PTFE, Dingqing.

Impeller direct motor spindle, the design is unique, easy to install, high precision to ensure concentricity, to solve the vibration, not only to improve the strength of the pump, but also to avoid the traditional impeller and shaft complex assembly

Accurate clearance, optimized performance.

Selection of universal stainless steel mechanical seal. Sealing surface with a silicon carbide carbide, wear-resistant wear-resistant powder.

Deepening the inlet of the leaf improves the import characteristics of the pump.

Accelerated discharge valve, you can make the pump chamber of the residual liquid discharge, recovery without residue.

All materials contact parts use high-quality stainless steel 316L or 304 (optional), with the product contact surface smooth and smooth, no residue. Surface roughness up to RA <0.28um, mechanical polishing or electrolytic polishing.

Product parameters
