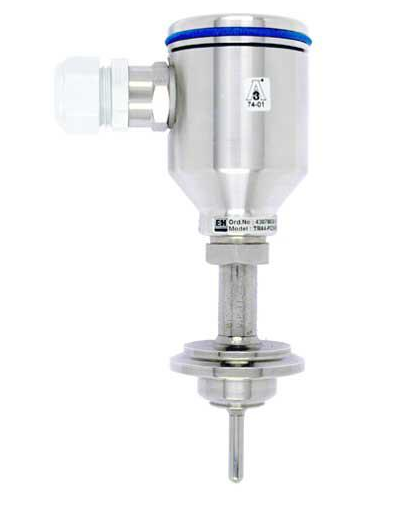

Omnigrad M TR44

product description

Integrated RTD thermal resistance, hygienic structural design

With a variety of process connections and extended neck types

High flexibility: Modular structural design, standard terminal block and user-defined thermal resistance Insertion depth

Provide the vast majority of common EHEDG certified hygienic process connections, the instrument"s structural design meets the 3A hygienic standard

High-precision measurement: Pt100 temperature sensor according to IEC 60751 (Class A or higher)

Can meet the requirements of the explosion-proof area in the measurement:

- Intrinsically safe instrument (Ex ia)

- no spark (Ex nA)

Integrated temperature transmitter

Endress + Hauser"s integrated temperature transmitter offers higher measurement accuracy and higher measurement reliability than direct temperature measurement without the temperature transmitter. According to the actual application conditions, the user can freely choose the following signal output mode and communication:

4 ... 20 mA analog output

HART®

PROFIBUS® PA

FF FOUNDATION fieldbus

Application areas

Can be used for food, pharmaceutical and other health areas and fine chemical industry measurement

Temperature measuring range: -50 ... 250 ° C

Pressure capacity up to 40 bar

Protection class up to IP 68
