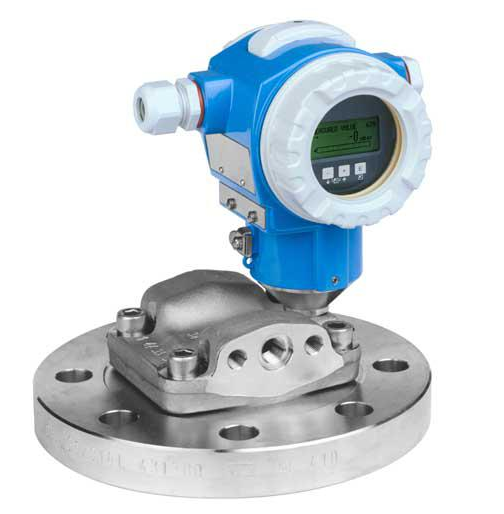

Deltabar S FMD76

Deltabar S FMD76

product description

Differential pressure transmitter, the use of ceramic sensors

Anti-overload, with functional monitoring, with HART, PROFIBUS PA or FF FOUNDATION fieldbus communication protocol

advantage

Extremely high repeatability and long-term stability

High accuracy: ± 0.075%, platinum grade: ± 0.05%

Range than 100: 1, special requirements can be higher

For flow and differential pressure monitoring, up to SIL3, certified by TüV SüD according to IEC 61508

HistoROM® / M-DAT storage module

Functional monitoring of measuring elements and electronic modules

Modular design, can be with the differential pressure, static pressure and pressure measuring instruments (Deltabar S, Deltapilot S, Cerabar S) module interchange, such as:

- Replaceable display unit

- Common pressure and differential pressure electronic modules

Quick commissioning via the Quick Setup menu

Live menu guided operation

Extensive self-diagnostic function

Application areas

The Deltabar S differential pressure transmitter can be used to solve the following measurement problems:

Liquid level, volume or mass measurement

Filter and pump differential pressure monitoring

Through a number of international certification
