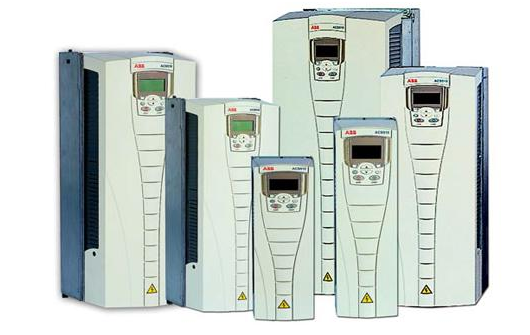

The ACS510 drive is used in a wide range of industrial applications and is suitable for all types of loads. The ACS510 is also optimized for fans and pumps, and typical applications include constant pressure water supply, cooling fans, subways and tunnel fans.

Bright spot

● Perfect fan pump application

● Advanced control panel

● patented technology for reducing harmonics: variable-type reactors

● Loose soft loop

● User-defined U / F curve

● Override mode

● Built-in RFI filter as standard, suitable for the first and second environment

● CE certification

Features		Performance	advantages
Perfect Matching	Enhanced PFC applications	Up to 7 (1 + 6) pumps can be controlled	Can switch more pumps
	SPFC	Built-in help key	Each pump can be adjusted in turn
	Multi-point U / F curve	You can freely define a 5-point U / F curve	More flexible and widely used
Fan water pump	Overtaking mode	Fire mode applied to tunnel fans	Used in emergency situations
	PID regulator	Two independent PIDs Controller: PID 1 and PID 2	With PID 2 can control a separate

		PID 1 can set two sets of parameters	External valve
More economical	Sensory characteristics	Noise optimization	According to the temperature of the inverter can be randomly distributed switching frequency, greatly reduce the inverter noise and improve the efficiency

		Increase the switching frequency when the inverter temperature decreases

		Controllable cooling fan: cool the inverter only when needed
	Flux optimization	The motor flux is automatically adjusted when the load is reduced
	Connectivity	Simple installation	Reduce installation time

		The following are the same as the " Can be installed side by side	Saving installation space

		The following are the same as the " Easy cable connection	Reliable cable connection

		The following are the same as the " It is easily connected to the fieldbus system via a variety of I / O connections and plug-in options
More environmentally friendly (standard)	EMC	RFI filters for the first and second environments are standard	No extra external filters are required
	Reactor	Sensing Reactor: Matches the inductance according to the different load	Reduce Total Harmonics (THD)

		Thus suppressing and reducing harmonics
Other	Advanced control panel	2 soft function keys, the function changes with the status of different	Easy to configure and debug

		Built-in help key	Quick Start

		You can observe the list of modified parameters	Quick access to parameters
	Field bus	Built-in RS485 interface, using the Modbus protocol	cut costs

		The plug-in fieldbus module is optional	Can adapt to a variety of bus protocol application requirements
